The FED-520 is a full-element analyzer with component temperature drift controlled to one part per million, ensuring exceptional stability and high accuracy. This instrument is suitable for jewelry testing stations, jewelry training institutions, schools, jewelry showrooms, jewelry factories, gold shops, and businesses involved in precious metal exchange. It can detect the thickness of plating layers in the jewelry industry, such as gold-rhodium plating, platinum-rhodium plating, and silver-gold plating; it can also analyze the metal content in electroplating solutions.
〉Analysis range 1ppm to 99.999%
〉Measurement accuracy RSD≤0.01%, Au≥96%
〉Test the coating thickness of the jewelry industry, such as gold rhodium plating, platinum rhodium plating, silver gold plating, etc;
〉Can analyze the metal content in the electroplating solution.
〉Suitable for jewelry testing stations, jewelry training institutions, universities, jewelry factories, gold shops, and enterprises engaged in precious metal exchange.

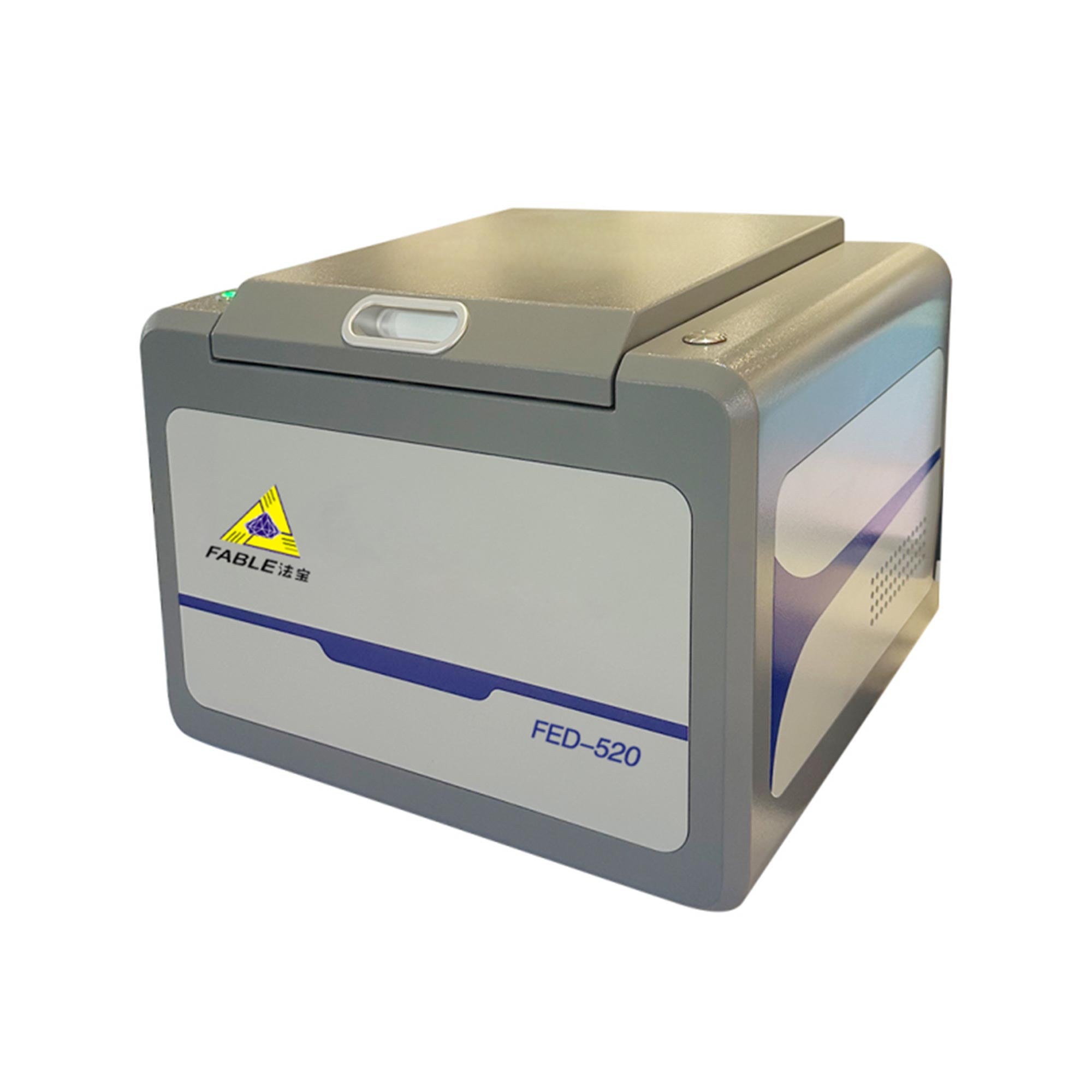

Model:FED-520
Specifications
Analysis Range: 1ppm to 99.999%
Measurement Accuracy: RSD≤0.01%, Au≥96%
Test Forms: Solid, Powder, Liquid
Photon Voltage: 5KV~50KV
High Voltage Power Supply: 0~50KV
Photon Current: 0μA~1000μA
Camera: High-definition camera
Filters: Multiple customizable options available
Detector: SDD detector
Resolution: 135±5eV
Multichannel Analyzer: Digital multichannel
Sample Chamber Size: 310*270*80 (mm)
Test Time: 5sec~30sec
Measured Elements: All 72 elements from sodium (Na) to uranium (U) (Au, Ag, Pt, Pd, Ru, Rh, Os, Ir, W, etc.)
Analysis Software: Qualitative and quantitative analysis software; displays test results simultaneously and dynamically; users can terminate the test at any time.
External dimensions: 460*390*350 (mm)
Weight: 38Kg
Environmental requirements:
Ambient temperature: -5℃~40℃;
Relative humidity: 15%～90%;
Power supply requirements: AC220V±10V, or 110V±10V, free from high-power electromagnetic interference and vibration sources;
Rated power: 120W
