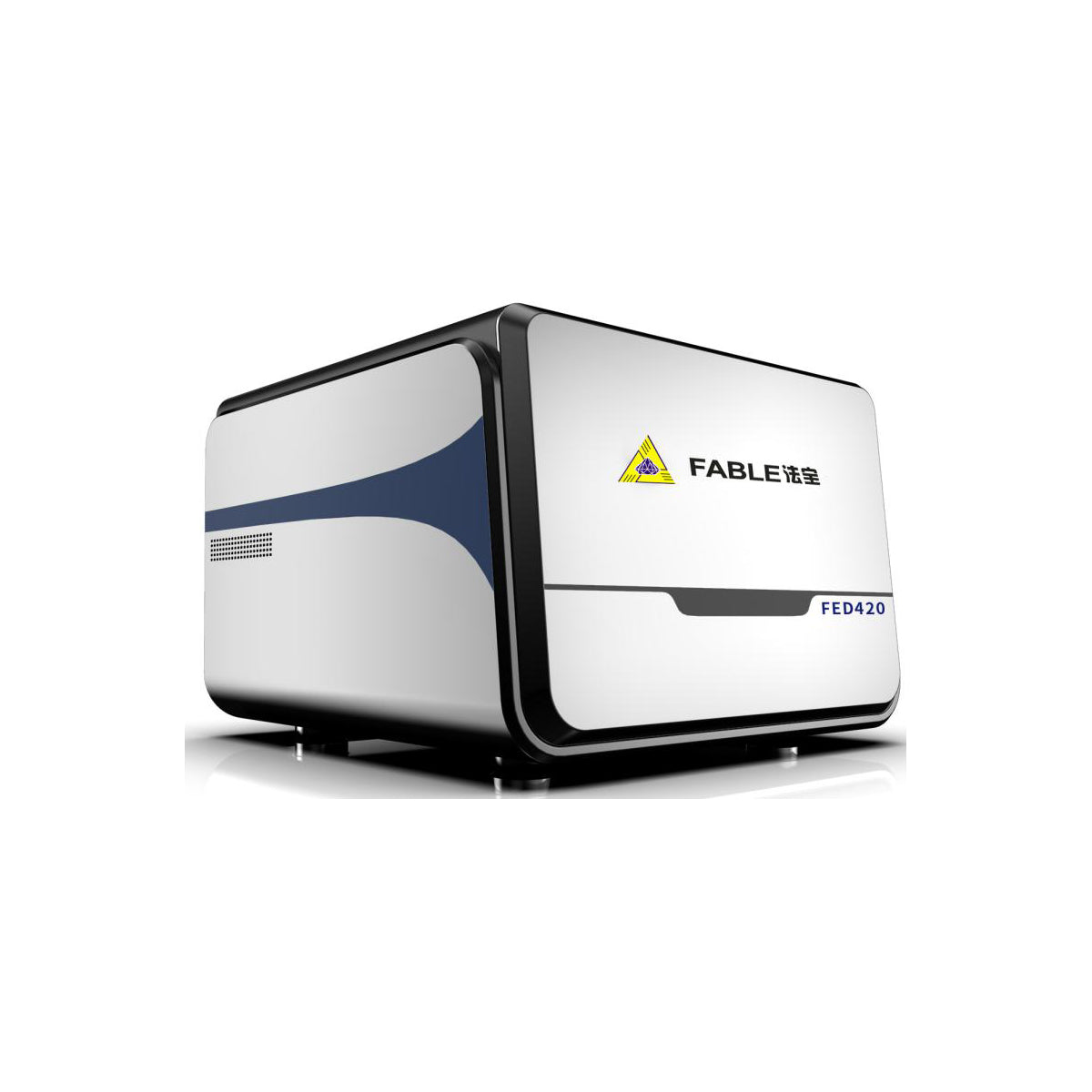

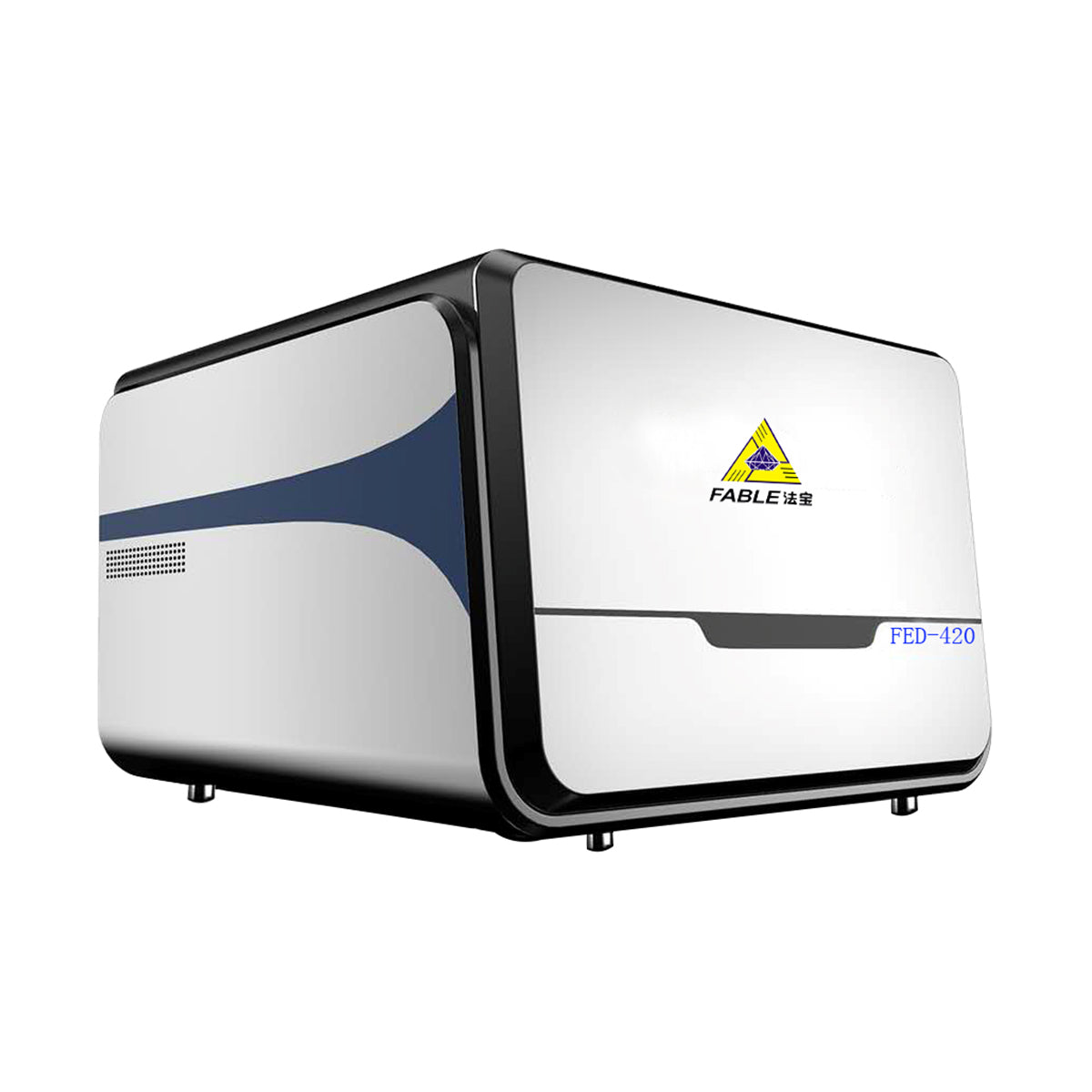

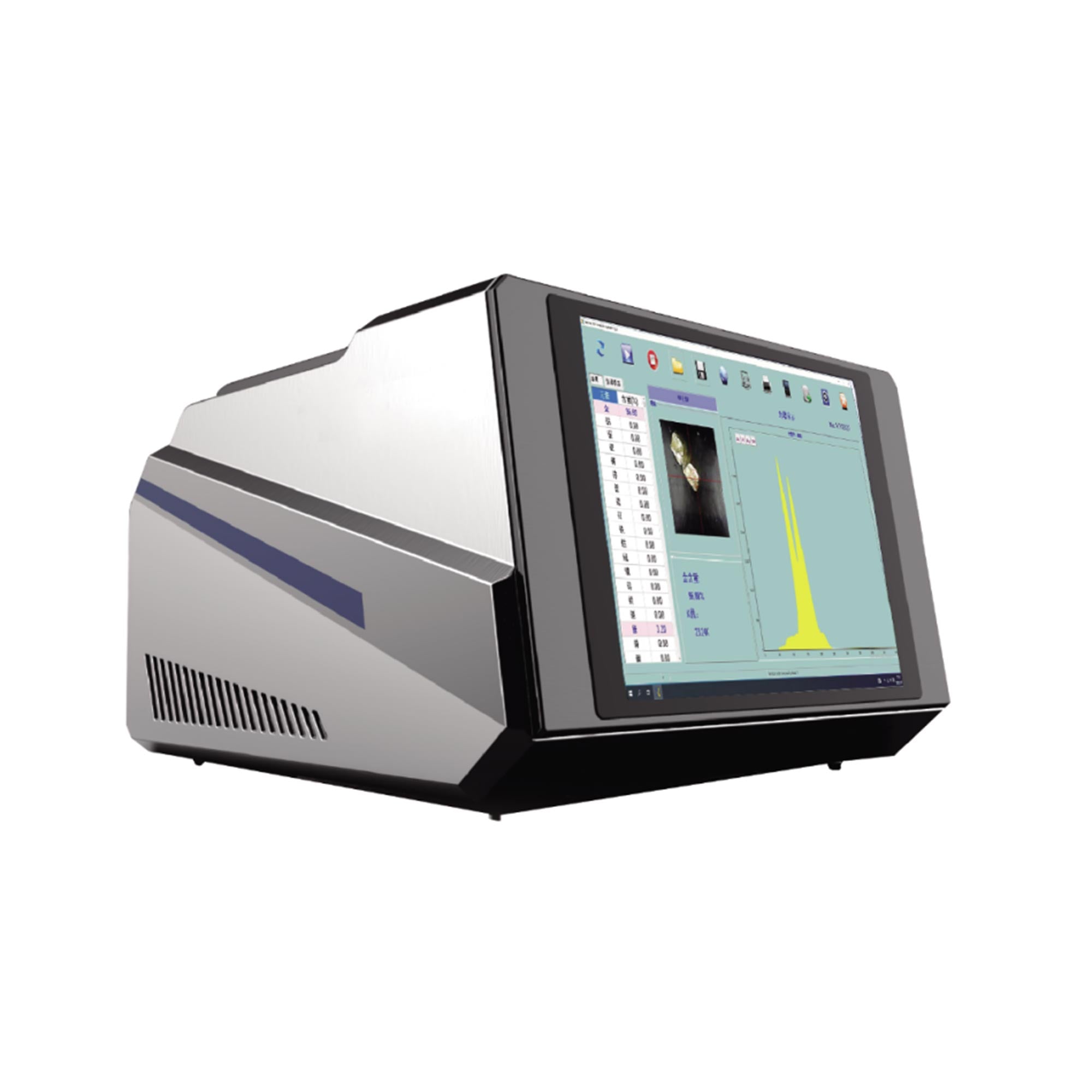

Model:FED-420
Specifications
Analysis range 0.01% ~ 99.99%
Measurement accuracy RSD≤0.03%
Test form: solid, powder, liquid
Light tube voltage 5KV~50KV
High voltage power supply 0~50KV
Light pipe tube flow 0μA~1000μA
Camera HD camera
Filters can choose a variety of custom switching
Detector: Si-pin detector
Resolution 145±5eV
Multichannel Analyzer Digital Multichannel
Sample cavity size 310*270*80 (mm)
Test time 5sec~30sec
Measuring elements: Detect gold, silver, platinum, palladium, iridium, cadmium, copper, nickel, zinc, rhodium, ruthenium, iron, cobalt, osmium, tungsten, lead,etc.,72 elements (except light elements)
Analysis software Qualitative and quantitative analysis software displays the test results while testing. It can dynamically display the test results in real time, and the user can terminate the test at any time.
Product dimensions 460*390*350 (mm)
Weight 38Kg
Instrument environment requirements: Ambient temperature -5℃~40℃;
Relative humidity 15%~90%;
Power requirements: AC220V±5V, 50/60HZ, no high-power electromagnetic and vibration sources nearby
Power:120W
A dedicated computer comes standard.
Model | Analysis range | Measurement accuracy | Detector | Resolution | Detect elements |
FED-420 | 0.01% ~ 99.99% | RSD≤0.03% | Si-pin detector | 145±5eV | No light elements |
FED-520 | 1ppm to 99.999% | RSD≤0.01%, Au≥96% | SDD detector | 135±5eV | All 72 elements |
