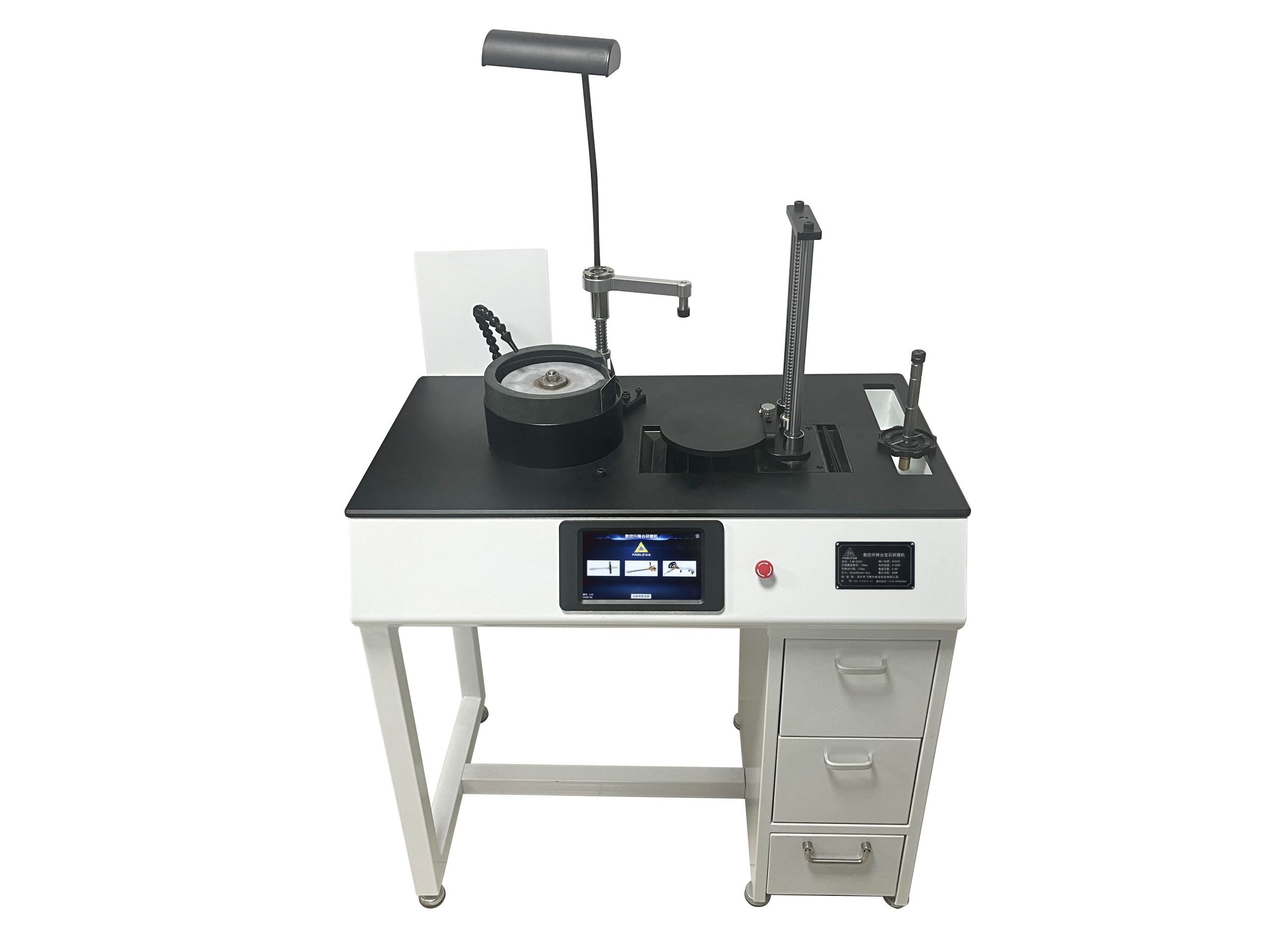

CNC lifting platform Lapidary Machine FJM-S2021

CNC lifting platform Lapidary Machine FJM-S2021 Specifications

Integrated design of grinding machine and bracket,a tool compartment on the right side of the worktable provides convenient storage for faceting arms, calipers, and other tools.

A circulating water supply system is designed. The system includes a flow touch-sensitive control knob for precise speed adjustment and an automatic shut-off function that stops water flow when the grinding wheel halts.

Lighting system: Features a 6W high-brightness LED panel light with a touch-sensitive control system;The rectangular light head provides extensive illumination, and the angle can be freely adjusted for optimal visibility.

With two metal storage cabinets &Platform motion parameters and storage parameters are all operated and displayed on the color touch screen, and all data can be saved when the power is turned off; It enables users to store up to 10 angle settings.

The platform can automatically move up and down and left and right to the required position, user only needs to input the corresponding gem Angle value or height value,no need to be moved manually;

Equipped a reading board on the back of the table, which can place gemstone shape faceting drawings or other documents;

Equipment spindle grinding disc: diameter 150mm

Spindle motor: A 220V, 180W variable-speed motor allows smooth adjustment from 0 to 4500 RPM, accommodating different gemstone materials and grinding requirements. Maximum power output: 300W;

X-axis (left and right movement) : Accuracy: ±0.05mm, total stroke: 0~170mm;
Z axis (platform lifting) : Accuracy: ±0.01mm, total stroke: 0~270mm
Angle range of machined gems: 0°~90°;
Overall dimension: 82cm*50cm*110cm;(Includes lifting table pole)
Safety device: The front side panel of the equipment is equipped with a red emergency locking button.

CNC lifting platform Lapidary Machine FJM-S2021 Accessories

The machine components include a faceting hand/arm, a Fable High Quality Black Exquisite octangle Hand, an Zinc alloy polishing disc with a diameter of 150mm, 3 pcs diamond disc for Faceting polishing (800#; 1200#; 1500#), a Gem table grinder,a dop plate,a dop worktable,Dop Wax ,a Folding magnifier,a Pliers,a wrench,10 dop sticks, a set of lifting table. When connecting the accessories, be sure to tighten the screws.
