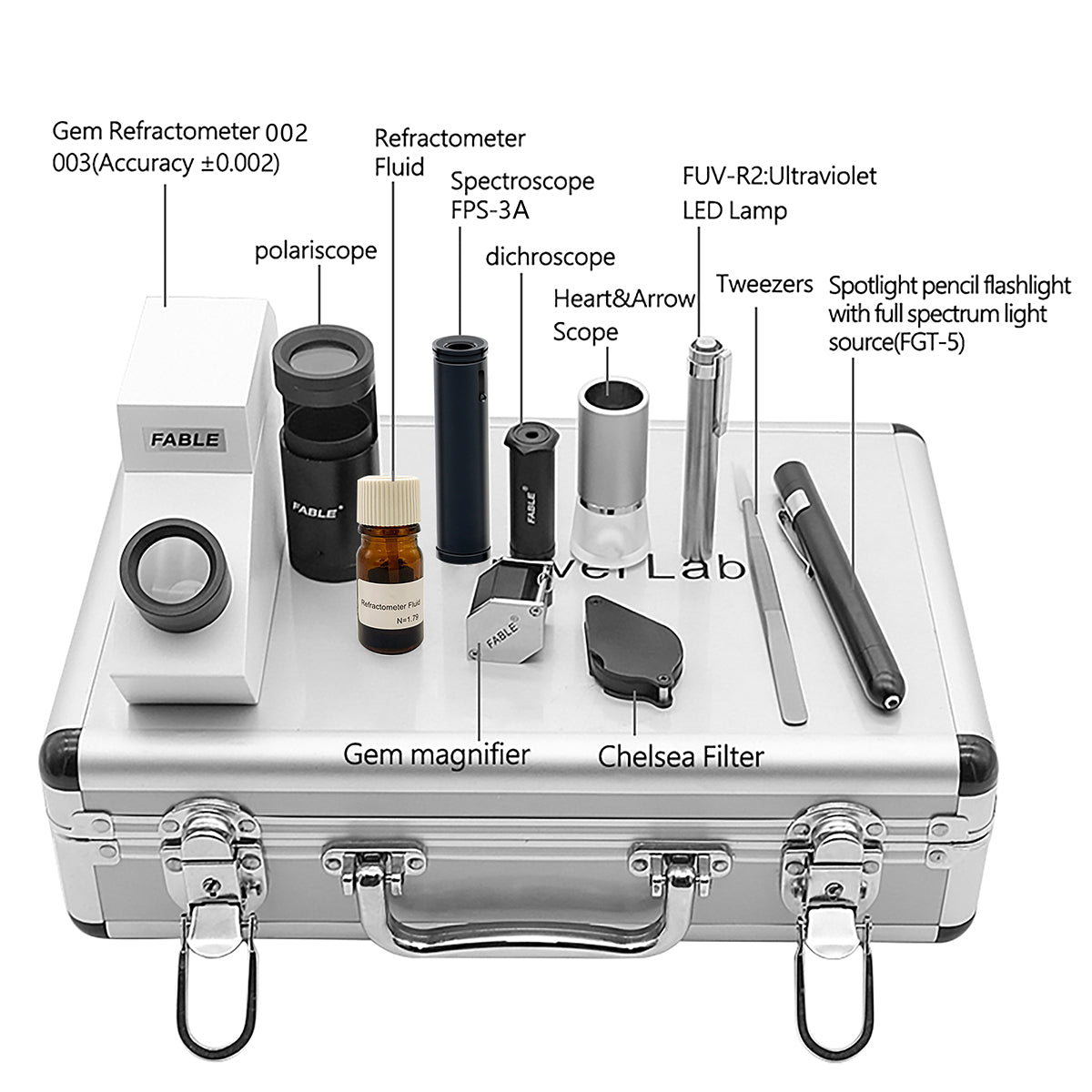

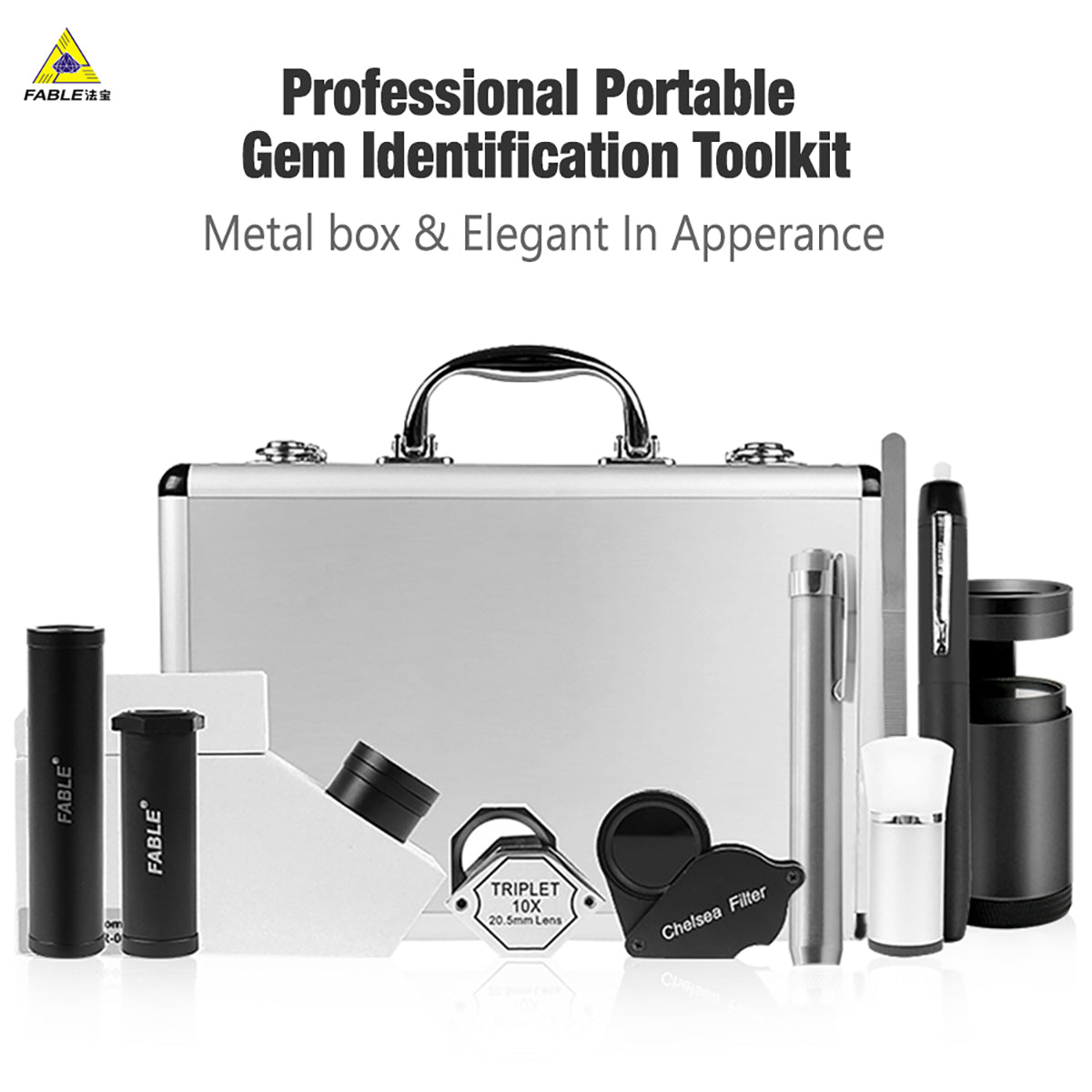

Gem Travel Lab FGL-10A

Professional Portable Gem identification laboratory

Model:FGL-10A

1.Gem refractometer FGR-002 (including 2ML Refractive index Liquid)

2.Portable Gem Polariscope(FPP-30)

3.Handheld Prism Spectroscope-Focus adjustable(FPS-3A)

4.Calcite Dichroscope(FID-1)

5.10x20.5 Gem Loupe

6.(Emerald)Chelsea color filter(FCF-25)

7.high-efficiency full-spectrum condenser light source(Gem Pen Torch FGT-5)

8.Stainless steel gem tweezer(DT-M)

9.UV LED Torch (FUV-R2)

10.Heart&Arrow Scope(FCP-51)

Size: 320mm*240mm*105mm;

Weight: about 2.0kg.

Packaging:Exquisite Portable aluminum box

Applications

Gemological Laboratory, Gemology school, Jewelry industrial

Difference between FGL-10 and FGL-10A

Technical Parameter

1. Gem RefractometerFGR-002 :

 two ways power supply: 2x AAA batteries and world wide AC100--240V;

testing rang: 1.35-1.85;

accuracy: ≤±0.002;

appearance: Stainless steel with silver color.

2ml refractometer fluid (1.78±0.005) with unique design of the bottle

2. Portable Polariscope

diameter of polaroid: 30mm;

with LED cold light;

build-in 3V button battery;

appearance: alumunum alloy with black color.

3. Hand-held Grating Spectroscope

withadjustable focus;

with high resolution;

avoiding reflection of interference;

appearance: blank.

4. Calcite Dichroscope

material: excellent iceland spar;

big eyepiece and clear to read;

appearance: blank.

5. Gem Loupe

size: 21mm dia.;

magnification time: 10X;

appearance: silver.

6. Chelsea Filter

fastness and non-gumming

appearance: grind arenaceous aluminum alloy with black color(or white color).

7. Gem Tweezer

material: stainless steel;

high elastic.

8. UV LED lamp

3 pcs of LED;

violet color light.

9. Cutting Loupe

magnification time: 5X;

shape: turriform;

appearance: silver

10. Pen torch

special for diamond
