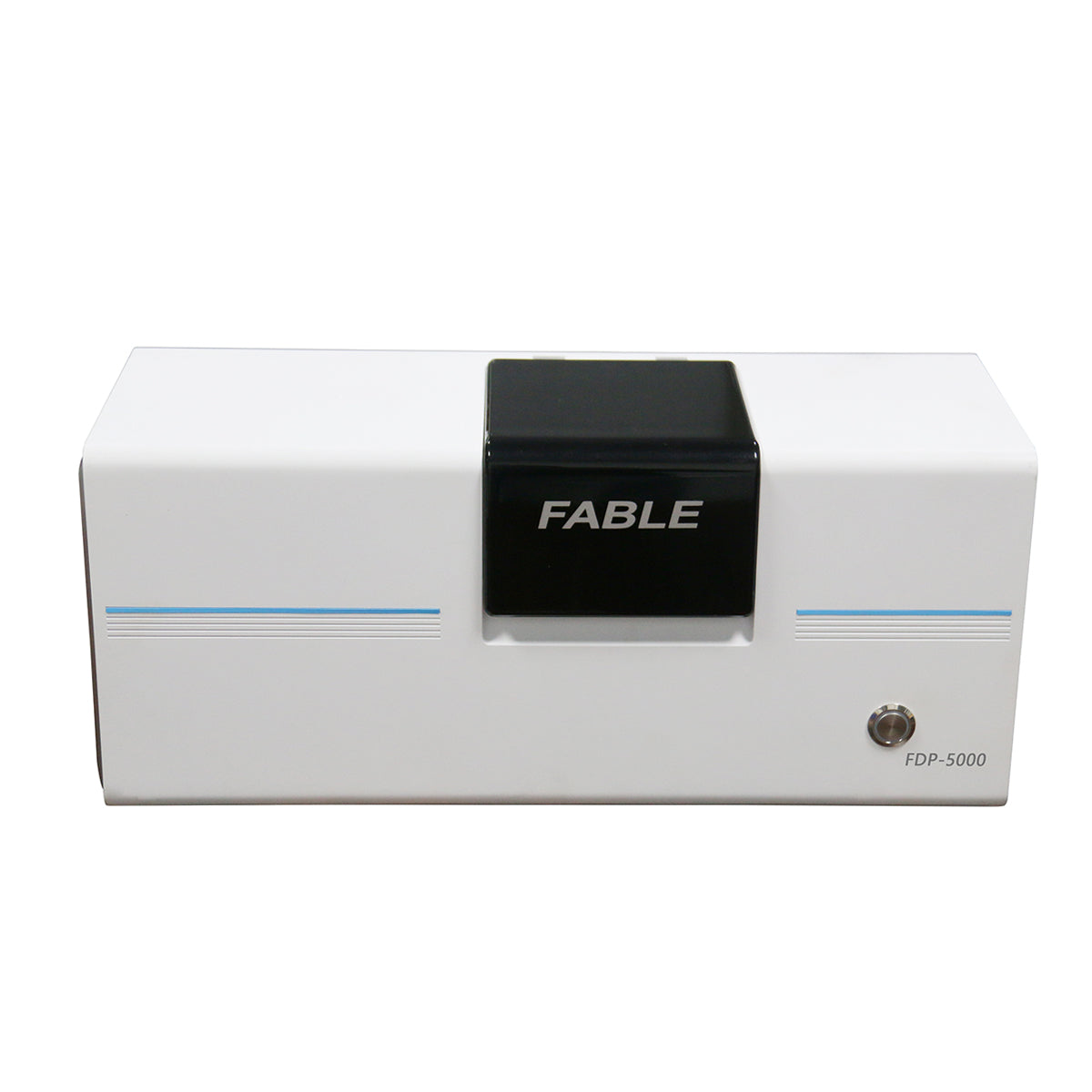

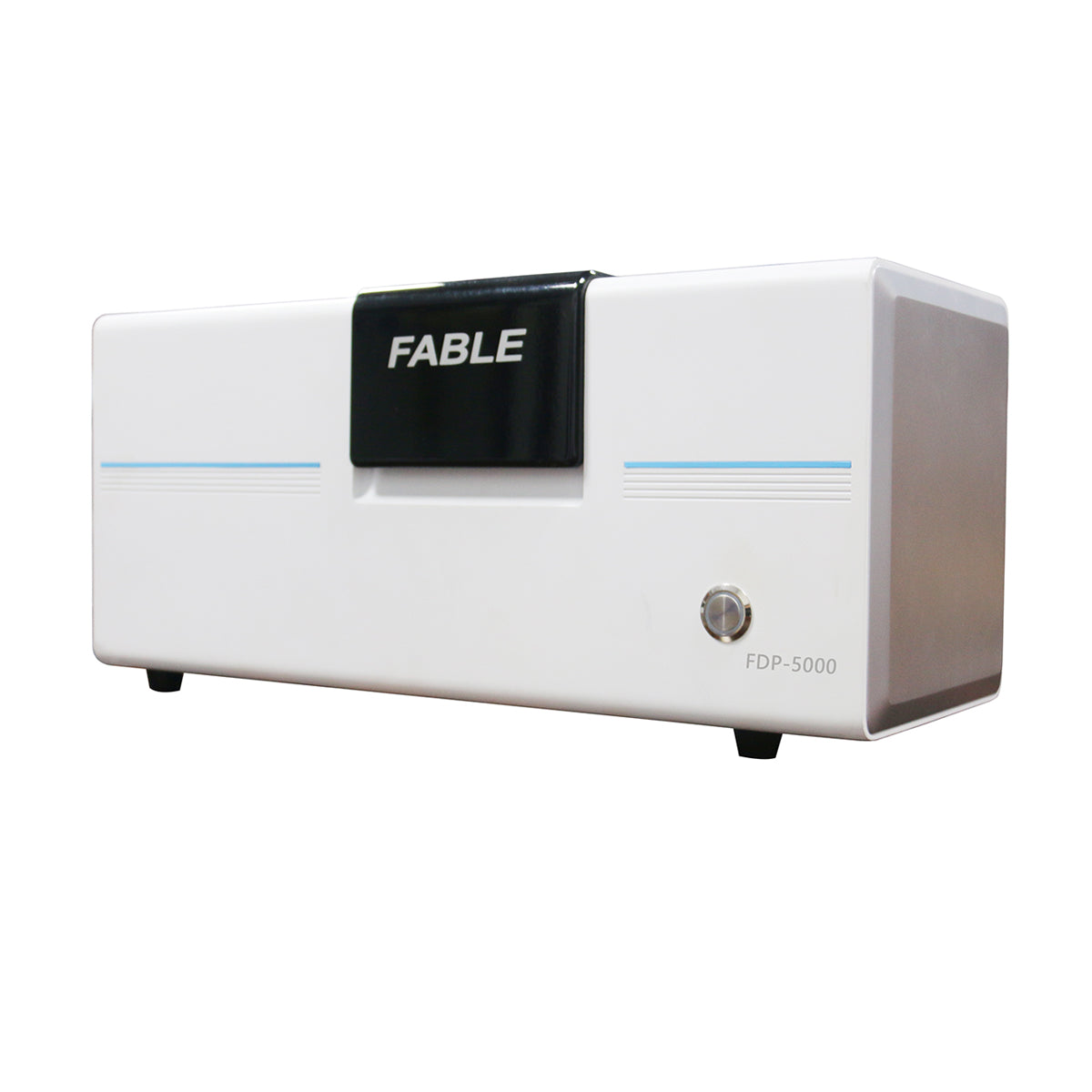

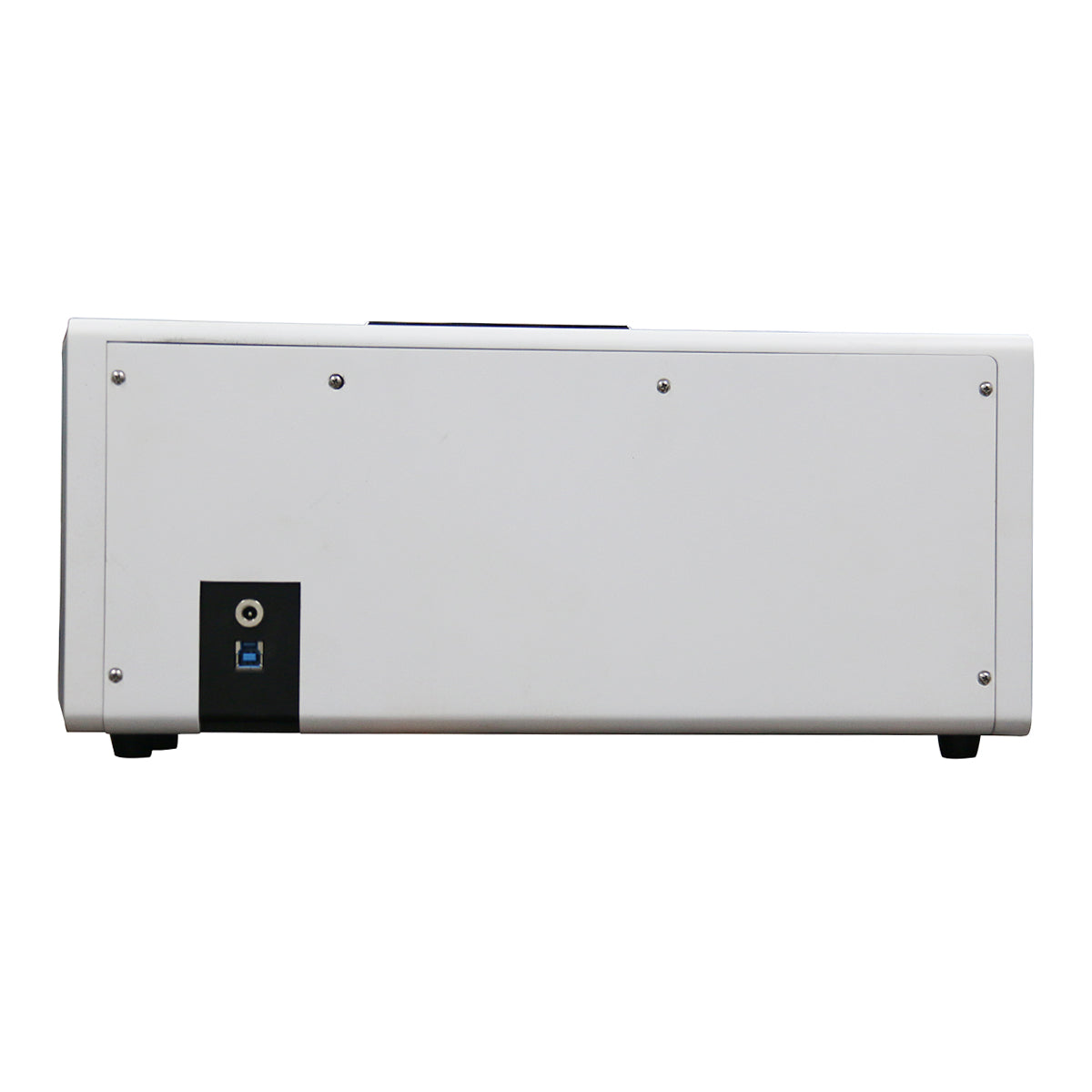

Diamond Cutting Proportioner FDP-5000
FDP5000 is a cost-effective and compact portable diamond cutting ratio grading device.
The measurement principle is to use a high-resolution industrial camera to accurately measure the contour of diamonds through 360 degree projection photography, and calculate information such as the size and angle of diamond cutting. The measurement software has built-in grading standards for diamond cutting according to the national standard, which can automatically calculate the cutting grade of diamonds. The built-in air pump is used to maintain the stability of the diamond during the rotation of the sample stage, which reduces complex wiring compared to previous designs and also reduces measurement noise.
Measurement range: Diamond diameter can be measured from 3-16mm, 0.05-14ct diamonds
Measurement accuracy: Linear error:+/-0.01mm; Angle error:+/-0.1 °
Measurement items
Dimensions: weight, maximum diameter, minimum diameter, full depth
Proportional level: Platform width ratio, Crown height ratio, Waist thickness ratio, Pavilion depth ratio, Total depth ratio, Bottom to tip ratio, Star engraved surface length ratio, Lower waist surface length ratio
Symmetry level: Waist circumference not round, countertop eccentricity, bottom tip eccentricity, crown angle unevenness, pavilion angle unevenness, countertop/bottom tip deviation, waist thickness unevenness, and table width unevenness
Diamond Cutting Proportioner
Model:FDP-5000
Specifitions
Measurement range: Diamond diameter can be measured from 3-16mm, 0.05-14ct diamonds
Measurement accuracy: Linear error:+/-0.01mm;Angle error:+/-0.1 °
Test speed: 5 seconds/time
Measurement items
Dimensions: weight, maximum diameter, minimum diameter, full depth
Proportional level: Platform width ratio, Crown height ratio, Waist thickness ratio, Pavilion depth ratio, Total depth ratio, Bottom to tip ratio, Star engraved surface length ratio, Lower waist surface length ratio
Symmetry level: Waist circumference not round, countertop eccentricity, bottom tip eccentricity, crown angle unevenness, pavilion angle unevenness, countertop/bottom tip deviation, waist thickness unevenness, and table width unevenness
